Products and Accessories

How to order
Please use the drop-down menus to select the Super-PID options to suit your Router and CNC setup. All items will display in a new window showing the shopping cart. With checkout via PayPal or secure credit card ordering. Please note: PayPal requires 'cookies on'. All prices are in $USD.
PayPal Logo small



Any questions about ordering or other payment options;

email us at SuperPID@VHiPe.com
SuperPID-v2

Super-PID is made here in Australia. We airmail direct to every country!

Delivery time into the USA is currently about 12 to 25 business days for standard Online Tracking. EMS Express is the fastest delivery about 6 to 15 business days. Last updated 2nd October 2023.

Every order includes free shipping upgrade to Online Tracking. EMS Express can be added to your order during checkout.

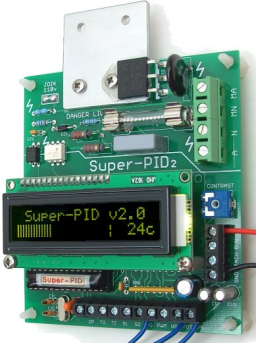

  Super-PID v2 Closed Loop Router Speed Controller for AC Routers

Every Super-PID is fully assembled and thorougly tested before shipping. Each Super-PID v2 order includes;
  • LCD Display, gold anodised heatsink, PCB standoffs, firmware IC.
  • Spindle infrared RPM sensor with 2.5 metres cable connected and tested (custom cable length can be ordered below).
  • Manual Speed control pot (1/4" shaft) connected and tested
    (Note!: a knob is not included, knobs are available for purchase below).
  • Polycarbonate tube to protect the RPM sensor inside router must be securely mounted with silastic/silicone. We recommend also securing the RPM sensor cable into place with silicone to protect against vibration movement.
  • Note!: For safety every Super-PID must be installed into an enclosure (enclosures are available for purchase below).
  • Download SuperPID-v2 Instructions refer to Tech Support.
  • Super-PID Closed Loop AC Router Speed Controller is Made In Australia.
    		• SuperPID-v2


    SuperPID-v2 Hardware
    Super-PID v2 Closed-Loop Speed Control for AC Routers
    To order please complete all the options below to suit your Router and CNC setup.
    Router AC Mains Voltage
    Router Brand
    Router Model
    Super-PID v2 Firmware Setting - Router Speed Control Method
    LCD Colour
    Where did you hear about Super-PID?
    Any message
    		 Price: $155.00
    Quantity:



    Super-PID optional accessories below.

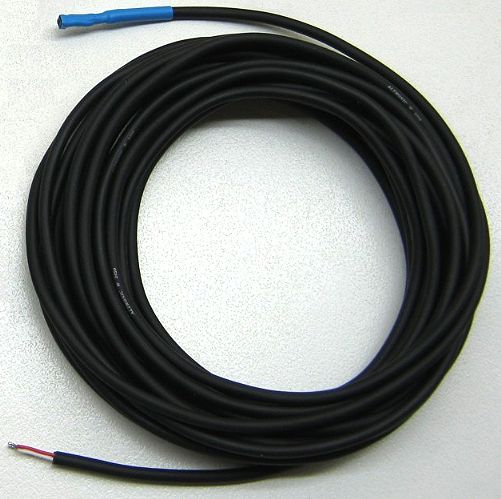

      Extra Wiring Length for the included RPM Sensor Lead

    The included RPM Sensor Lead is 2.5 metres (8.2 feet).
    For larger CNC machines or remote mounting of Super-PID order a longer cable lead to suit your specific application.

    RPM Lead Extra wiring length for included RPM Sensor. Select required cable length.
    Included RPM Sensor Lead is 2.5m (8.2'). Select the total wiring cable length to suit your larger CNC machine or for remote mounting of Super-PID controller.
    Price: $1.20/metre



      Temperature Sensor Lead and Additional RPM Sensor Lead

    Tested and ready to use sensor leads to suit your CNC machine setup or your specific application.

    Temp Lead Temperature Sensor Lead. Select required cable wiring length.
    Connects to Super-PID and displays on LCD the temperature of the router motor, or CNC hardware, or Super-PID enclosure, etc. Anything you wish to temperature monitor.
    $8.30 + $1.20/m



    RPM Lead Additional/Second RPM Sensor Lead. Select required cable wiring length.
    For a second router, or as a backup RPM Sensor Lead. Fully tested ready to use.
    $8.30 + $1.20/m

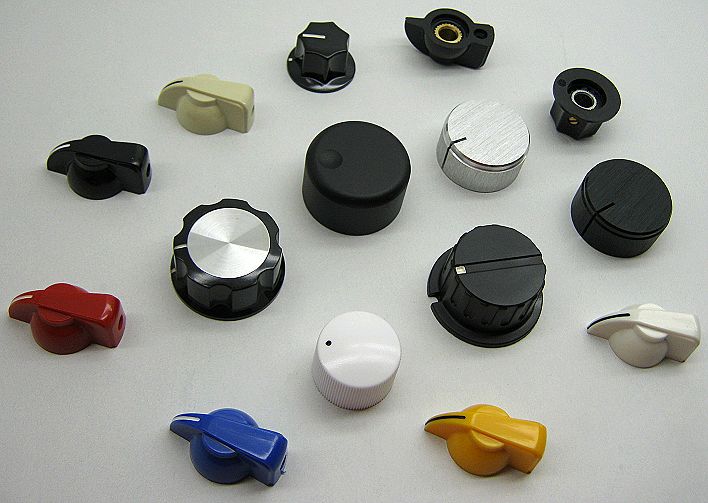

      Knobs

    A larger diameter knob makes it is easier to set the RPM speed on Super-PID manual speed control pot.

    knob Knob - PVC White 23mm diameter.
    With grub screw mounting onto 6mm (1/4") shaft potentiometer.
    Price: $1.60
    Quantity:


    knob Knob - PVC Black 24mm diameter.
    With grub screw mounting onto 6mm (1/4") shaft potentiometer.
    Price: $1.50
    Quantity:

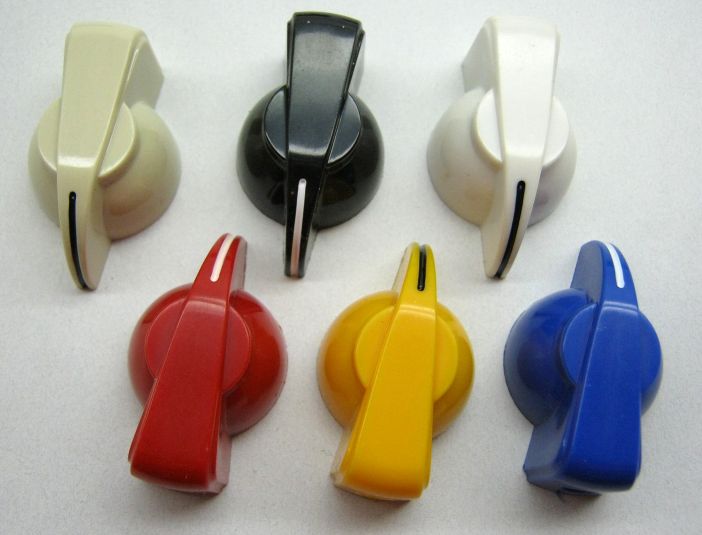

    knob Knob - Pointer Head PVC - Various colours available.
    With grub screw mounting onto 6mm (1/4") shaft potentiometer.     		knob
    Price: $2.10



    knob Knob - PVC Black 35mm diameter.
    With grub screw mounting onto 6mm (1/4") shaft potentiometer.
    Price: $2.60
    Quantity:


    knob Knob - PVC Black 33mm diameter, with Aluminium Cap.
    With grub screw mounting onto 6mm (1/4") shaft potentiometer.
    Price: $2.25
    Quantity:


    knob Knob - Largest diameter. PVC Black 45mm diameter, with Aluminium Cap.
    Our largest diameter Knob! With two grub screw mountings onto 6mm (1/4") shaft potentiometer.
    Price: $3.85
    Quantity:


    knob Knob - Solid Aluminium Clear Anodised 30mm diameter.
    With grub screw mounting onto 6mm (1/4") shaft potentiometer.
    Price: $4.10
    Quantity:


    knob Knob - Solid Aluminium Black Anodised 30mm diameter.
    With grub screw mounting onto 6mm (1/4") shaft potentiometer.
    Price: $4.25
    Quantity:

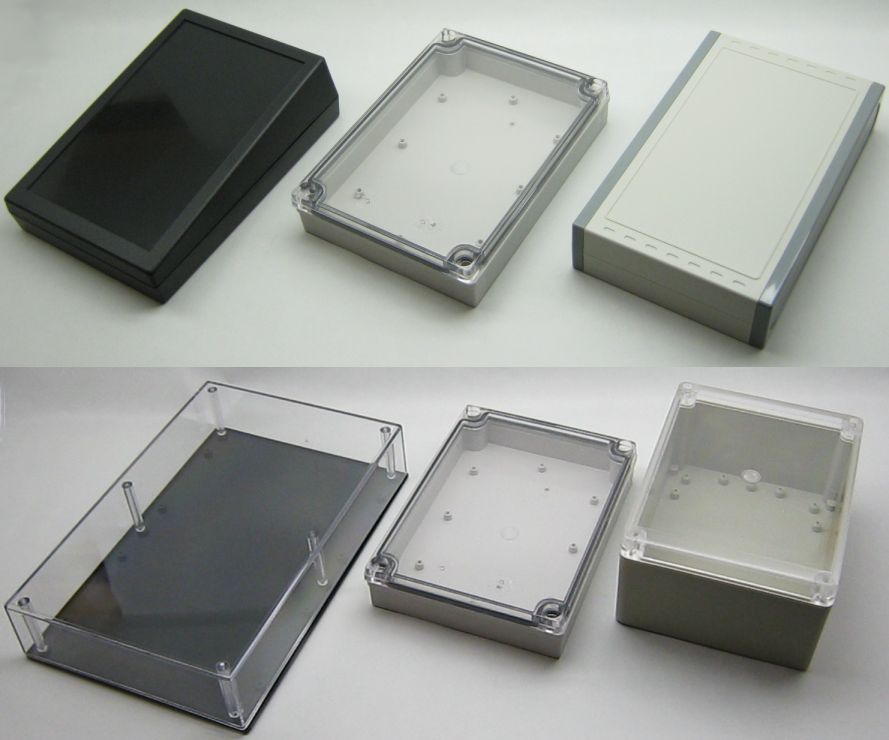

      Plastic Enclosures

    For safety every Super-PID must be installed into an insulated enclosure. Visit the User Gallery for enclosure ideas.

    Two-tone box Enclosure - 200H x 120W x 40D mm (7.87 x 4.72 x 1.57 inches)
    ABS two-tone grey.     		Enclosures
    Price: $9.90
    Quantity:


    Clear lid box Enclosure - 241H x 161W x 48D mm (9.50 x 6.34 x 1.9 inch). Clear lid, black gloss base.
    Polycarbonate clear lid and clear sides, black gloss polyester base.
    Made in USA.
    Price: $24.20
    Quantity:

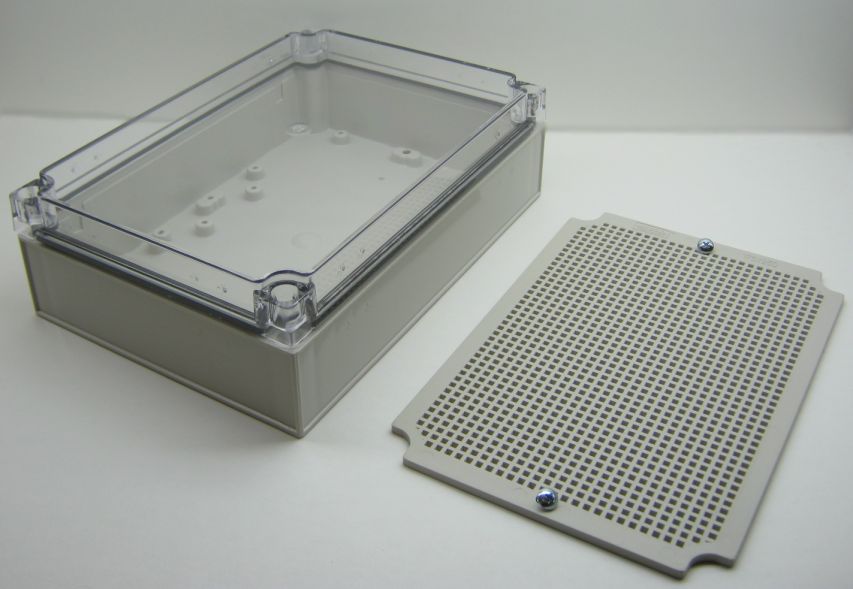

    Clear lid box Enclosure - 250H x 175W x 75D mm (9.84 x 6.89 x 2.95 inches) - Clear lid.
    Clear acrylic cover, grey base. IP65 moisture/dust seal.
    Optional PCB mounting plate at base of enclosure.
    Price: $40.95

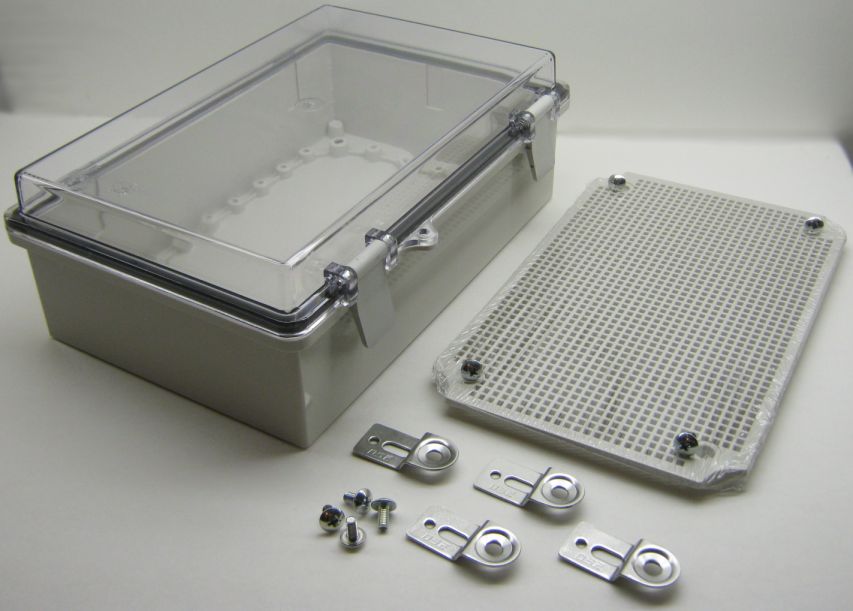

    Clear lid box Enclosure - 290H x 190W x 100D mm (11.42 x 7.48 x 3.94 inches) - Clear lid.
    Clear acrylic cover, grey base. IP65 moisture/dust seal. Includes (4 qty) mounting brackets. Optional internal base PCB mounting plate. Optional internal top PCB mounting swing plate and support frame - includes support frame, top plate, metal hinges, all screws and quick release bolts.
    Price: $45.85



    Clear lid box Enclosure - 390H x 290W x 100D mm (15.35 x 11.42 x 3.94 inches) - Clear lid.
    Clear acrylic cover, grey base. IP65 moisture/dust seal. Includes (4 qty) mounting brackets. Optional internal base PCB mounting plate. Optional internal top PCB mounting swing plate and support frame - includes support frame, top plate, metal hinges, all screws and quick release bolts.
    Price: $60.95

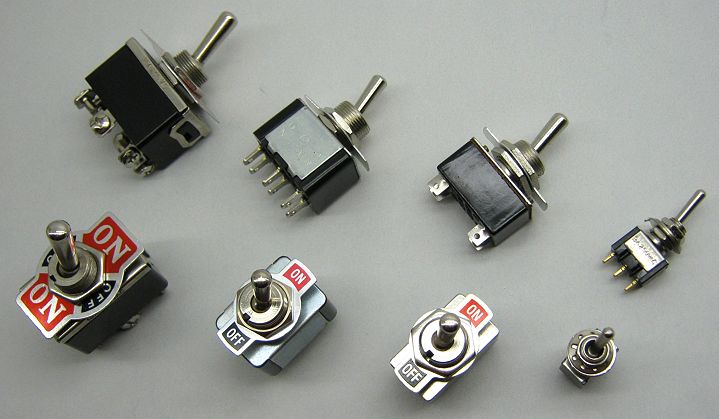

      Switches

    ON/OFF, "change-over" switch for selecting manual pot or PC speed control. See example wiring diagram switch options.

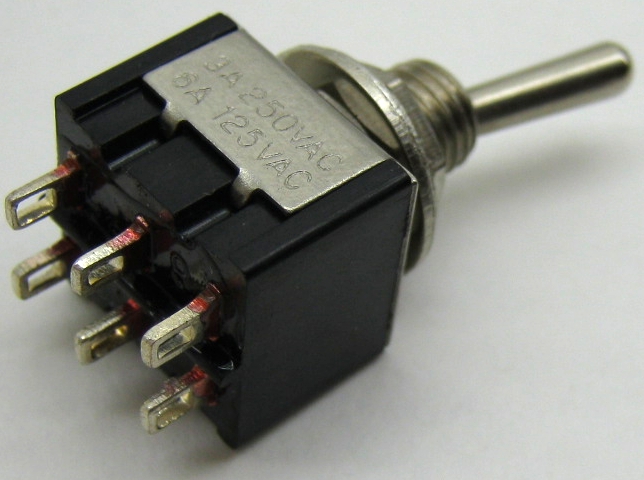

    Toggle Switch Toggle switch Miniature - DPDT 3Amp @ 240V AC or 6Amp @ 110v AC.
    Chassis mount vertical action toggle. Panel hole 6mm diameter. Two way switch.
    Price: $3.25
    Quantity:


    Toggle Switch Toggle Switch Miniature On/Off/On - DPDT 3A @ 240vAC or 6A @ 110vAC.
    Chassis mount vertical action toggle. Panel hole 6mm diameter. Two way switch with centre OFF.
    Price: $3.95
    Quantity:

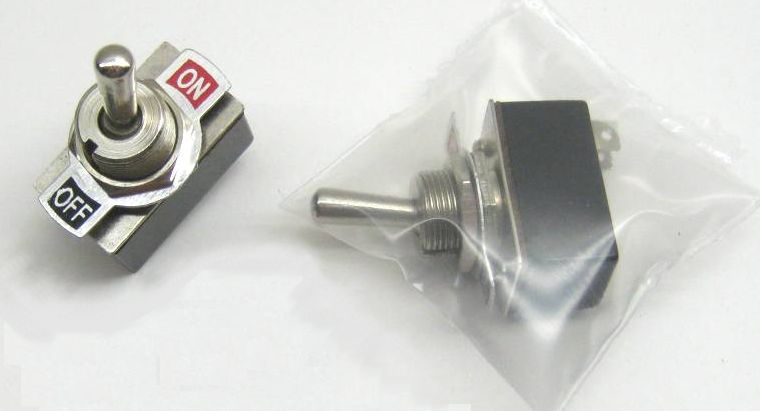

    Toggle Switch Toggle with metal On/Off tag - SPST 2A @ 240v AC or 4A @ 110v AC.
    Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
    Price: $2.10
    Quantity:


    Toggle Switch Heavy Duty Toggle metal ON/ON tag - DPDT 3A @ 240v AC or 5A @ 110v AC.
    Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
    Price: $2.65
    Quantity:


    Toggle Switch Toggle with metal On/Off tag - DPDT 2A @ 240v AC or 4A @ 110v AC.
    Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
    Price: $2.95
    Quantity:


    Toggle Switch Heavy Duty Toggle metal On/Off tag - DPDT 3A @ 240v AC or 6A @ 110v AC.
    Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
    Price: $3.60
    Quantity:


    Toggle Switch Extra Heavy Duty Toggle On/Off/On tag - DPDT 10A @ 240v AC or 20A @ 110v AC.
    Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch with centre OFF.
    Price: $4.55
    Quantity:

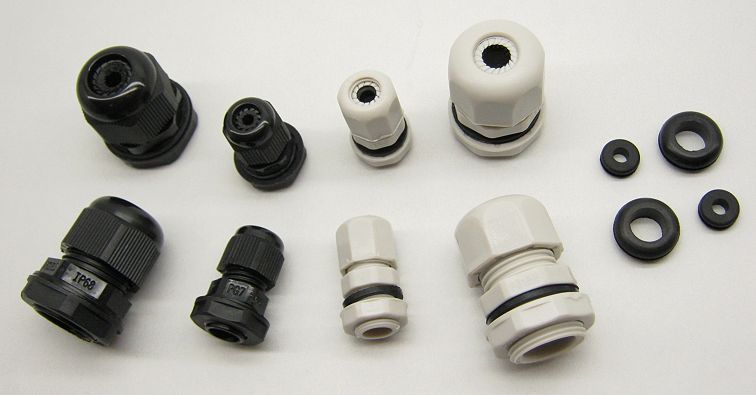

      Cable glands and grommets

    To protect wiring/cables through the enclosure wall.

    Cable Gland Cable gland small PG7 - Grey plastic. Rubber clamping ring, IP68 moisture seal.
    Cable hole 3-6.5mm (1/4"). Panel hole 12.5mm diameter. External depth from chassis 26mm.
    Price: $1.95
    Quantity:


    Cable Gland Cable gland large PG13.5 - Grey plastic. Rubber clamping ring, IP68 moisture seal.
    Cable hole 6-12mm (1/2"). Panel hole 20mm diameter. External depth from chassis 35mm.
    Price: $2.55
    Quantity:


    Cable Gland Pair/Set - Small Grey Cable Gland PG7 (plus) Large Grey Cable Gland PG13.5.
    Combined from above, with a small discount.
    Price: $3.95
    Quantity:


    Cable Gland Cable gland small PG7 - Black plastic. Rubber clamping ring, IP68 moisture seal.
    Cable hole 3-6.5mm (1/4"). Panel hole 12.5mm diameter. External depth from chassis 26mm.
    Price: $2.70
    Quantity:


    Cable Gland Cable gland large PG13.5 - Black plastic. Rubber clamping ring, IP68 moisture seal.
    Cable hole 6-12mm (1/2"). Panel hole 20mm diameter. External depth from chassis 35mm.
    Price: $3.25
    Quantity:


    Cable Gland Pair/Set - Small Black Cable Gland PG7 (plus) Large Black Cable Gland PG13.5.
    Combined from above, with a small discount.
    Price: $5.40
    Quantity:


    Grommets Grommet set Black - 2x small grommets (plus) 2x large grommets
    Cable hole small 4.5mm, large 9.5mm. Panel hole small 8mm, large 12.7mm. Chassis wall thickness 1.5mm.
    Price: $2.80
    Quantity:

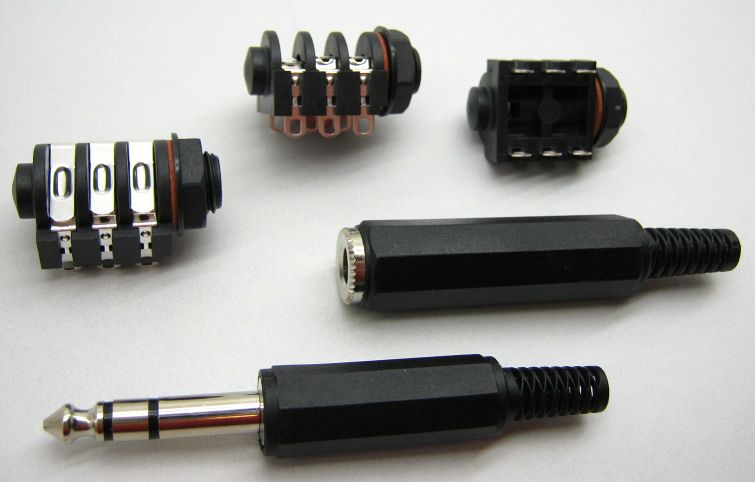

      Jack Plugs and Sockets

    For easy connect-disconnect of RPM Sensor wiring or Temperature Sensor wiring.

    Plug Inline Jack Plug Inline - Stereo, Insulated Black Plastic - 6.35mm (1/4").
    Inline cable plug.
    Price: $1.55
    Quantity:


    Socket chassis Jack Socket Chassis Mount - Inline Stereo, Insulated Black Plastic - 6.35mm (1/4").
    Panel hole 11mm diameter.
    Price: $2.25
    Quantity:


    Plug and Socket Pair/Set - Jack Plug Inline (plus) Jack Socket Chassis Mount.
    Combined from above, with a small discount.
    Price: $3.55
    Quantity:


    Socket Inline Jack Socket Inline - Stereo, Insulated Black Plastic - 6.35mm (1/4").
    Inline cable socket.
    Price: $1.60
    Quantity:


    Plug and Socket Pair/Set - Jack Plug Inline (plus) Jack Socket Inline.
    Combined from above, with a small discount.
    Price: $2.90
    Quantity:


      Small 5 volt DC Fans

    Fan cooling of Super-PID is recommended for some applications. Also for small, sealed enclosures.

    Fan 5volt DC Fan - 40x40x10mm - 5V, 0.8W, 5500rpm, 6.11cfm, 28dB
    Ceramic bearings rated for 6x lifespan of standard bearings.
    Price: $9.90
    Quantity:


    Fan 5volt DC Fan - 40x40x20mm - 5V, 1.0W, 5500rpm, 7.77cfm, 21dB
    Ceramic bearings rated for 6x lifespan of standard bearings.
    Price: $9.90
    Quantity:


      Miscellaneous Parts

    Extras.

    Pot 10kohm Potentiometer - 24mm Single rotary pot 10k ohm, linear taper, round shaft.
    Note: Every Super-PID already includes this pot!
    Price: $4.20
    Quantity:

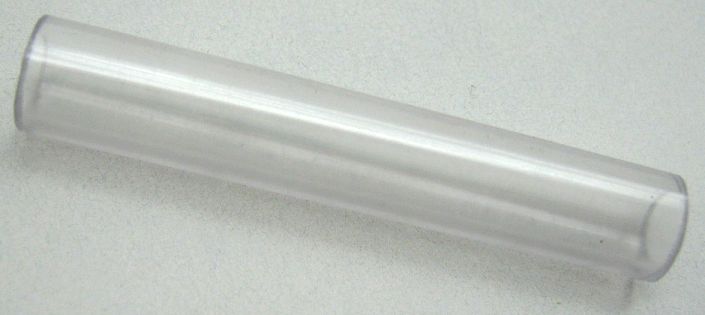

    Tube Polycarbonate tube - 55mm long 9mm O.D. Protects the RPM Sensor inside router.
    Note: Every Super-PID includes one tube! Not included with any Temperature Sensor or Additional RPM Sensor Lead. Secure with strong silicone/silastic, secure the cable too!!
    Price: $3.90
    Quantity:




    Please note: PayPal requires 'cookies' for the add to cart system above. All prices are in $USD.
